AJA OG-FIDO-R - Fiber to SDI

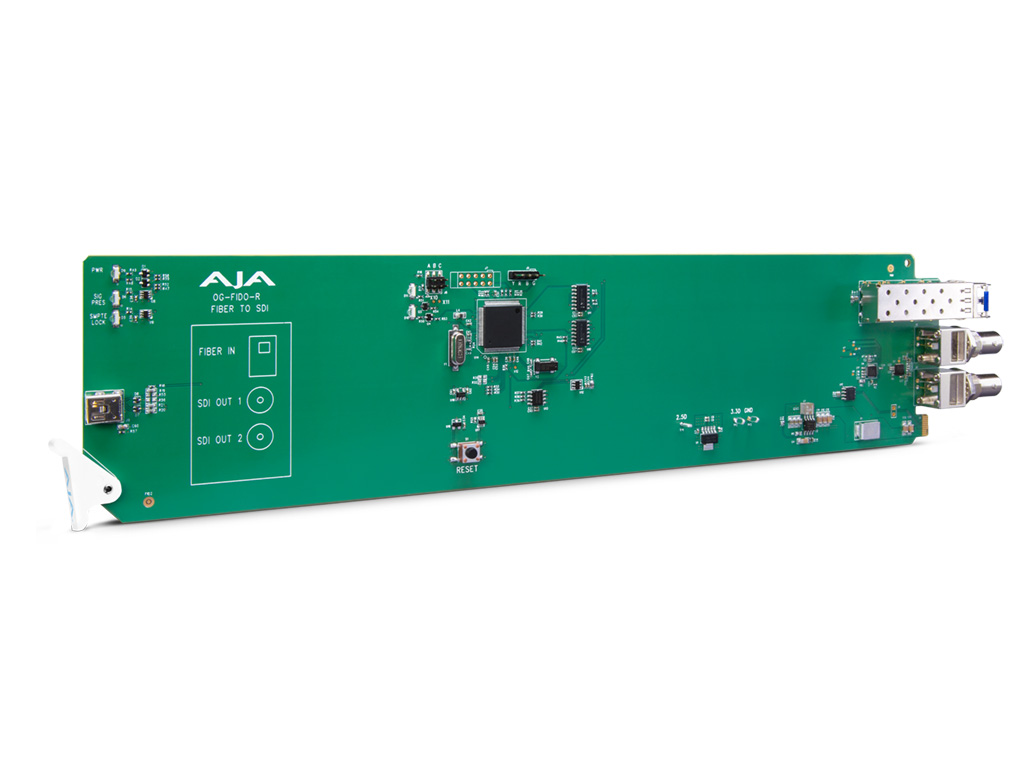

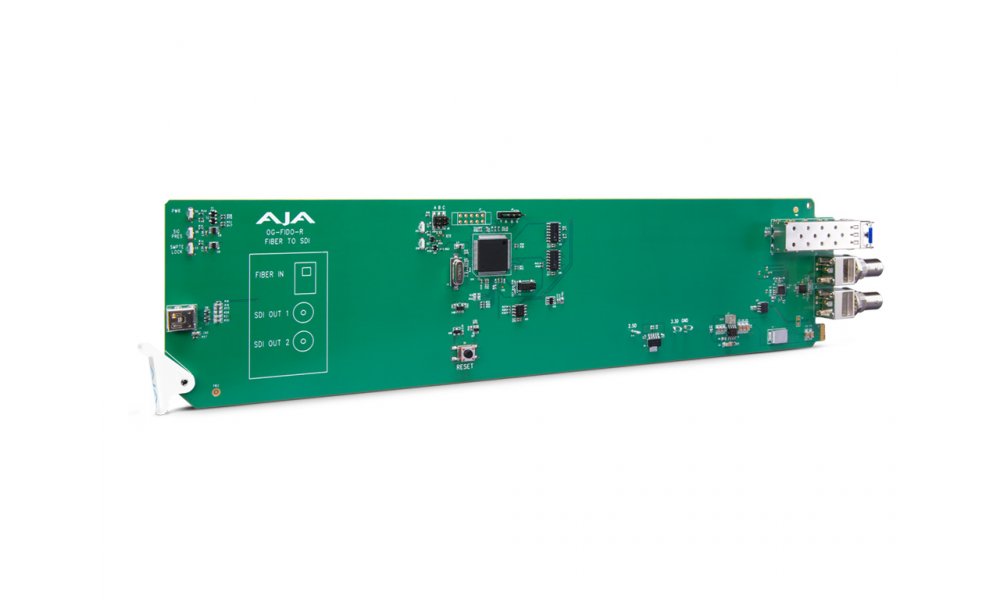

OG-FiDO-R - openGear 1-Channel Single Mode LC Fiber to 3G-SDI Receiver with DashBoard Support

The OG-FiDO-R is a state of the art, openGear compatible Fiber to 3G-SDI converter, enabling 3G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The fiber input is reclocked with best in class input jitter tolerance.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

Features

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Input: 1x Single Mode LC Fiber
• Outputs: 2x 3G-SDI BNC (Mirrored)
• Monitor via openGear DashBoard
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
• Nominal Wavelength: 1260-1620 nm
• Power: 2.5 watts
• Hot swap capable
• Compatible with OGX, OG3 and DFR-8321 openGear frames

Connectivity

The Fiber input is reclocked with best in class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Supports single mode fiber cable.

openGearCompatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Download DashBoard Software
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.

For the latest DashBoard software downloads for your platform of choice, please visit: http://www.opengear.tv/dashboard-software
