AJA OG-FIDO-TR - Bidirectional SDI to fiber

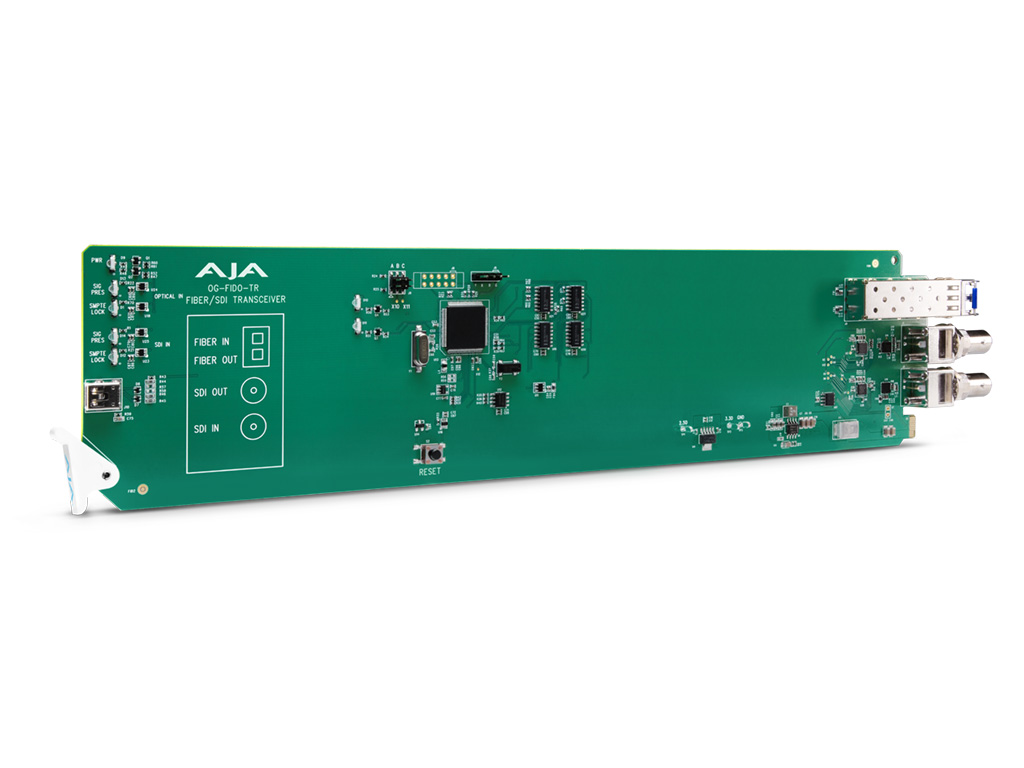

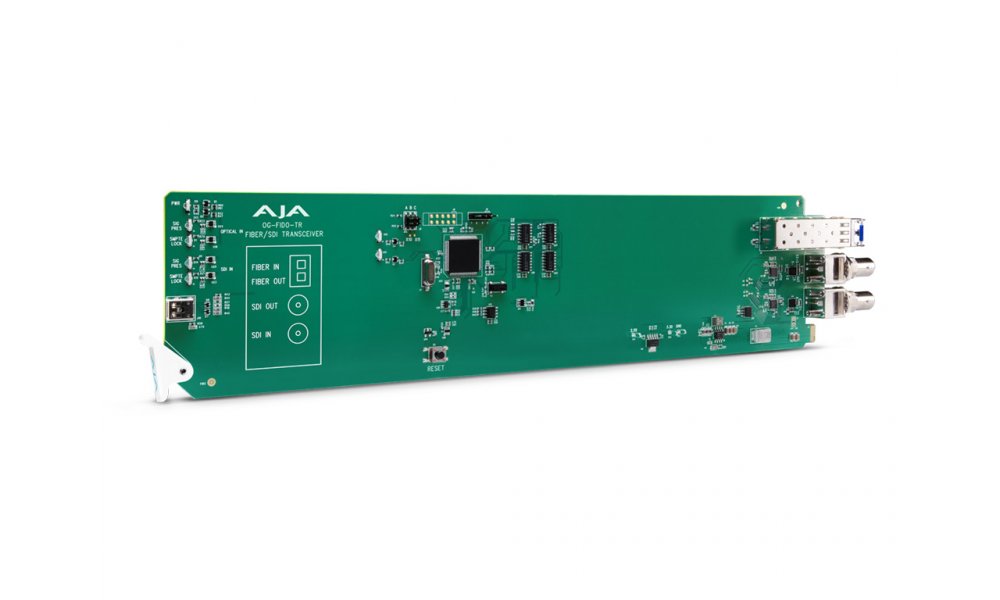

OG-FiDO-TR - openGear 1-Channel 3G-SDI/LC Single Mode LC Fiber Transceiver with DashBoard Support

The OG-FiDO-TR is a state of the art, openGear compatible 3G-SDI/Fiber transceiver. Both 3G-SDI to Fiber and Fiber to 3G-SDI conversions are supported.

openGear Mini-Converters offer unmatched flexibility and cost efficiency for 3G-SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) for single mode.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

Features

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Inputs: 1x 3G-SDI BNC; 1x Single Mode LC Fiber
• Outputs: 1x 3G-SDI BNC; 1x Single Mode LC Fiber
• Monitor via openGear DashBoard
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
• Nominal Wavelength: 1260-1620 nm
• Power: 2.5 watts
• Hot swap capable
• Compatible with OGX, OG3 and DFR-8321 openGear frames

Connectivity

Both Fiber and 3G-SDI inputs are reclocked with best in class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Both signal paths are independent and can be different rates. Supports single mode fiber cable.

openGearCompatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Download DashBoard Software

DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.

For the latest DashBoard software downloads for your platform of choice, please visit: http://www.opengear.tv/dashboard-software
