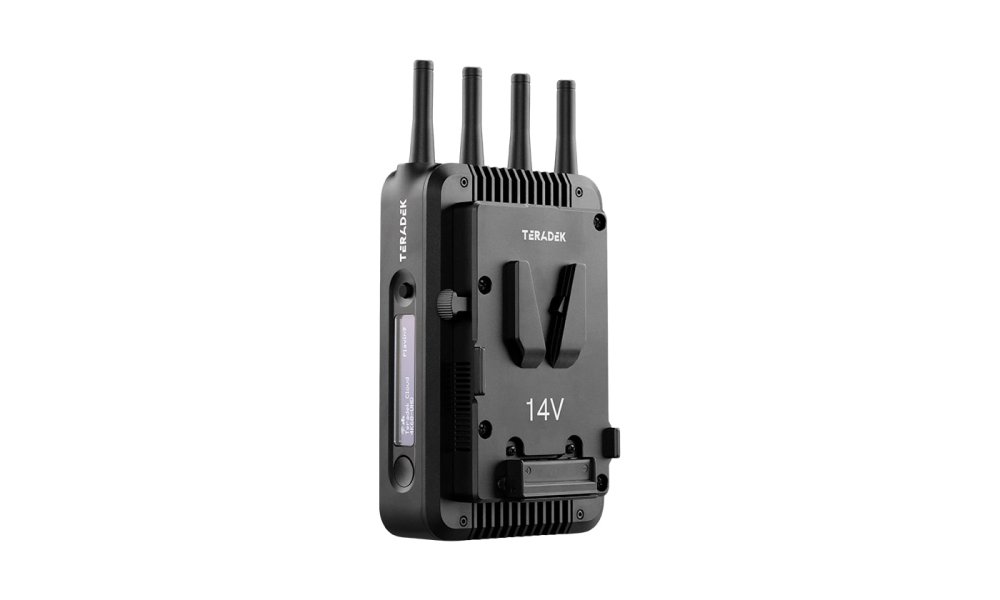

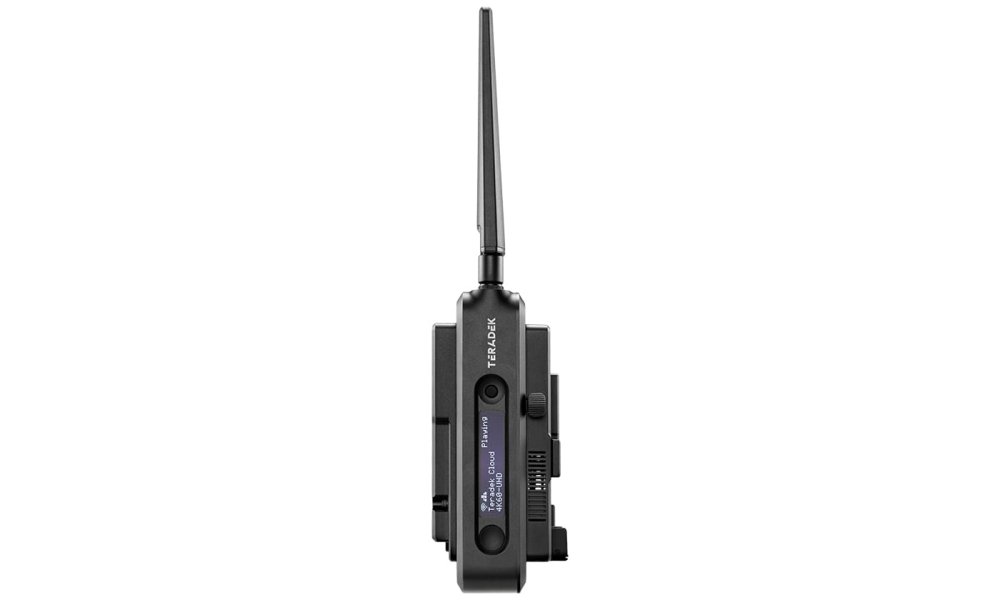

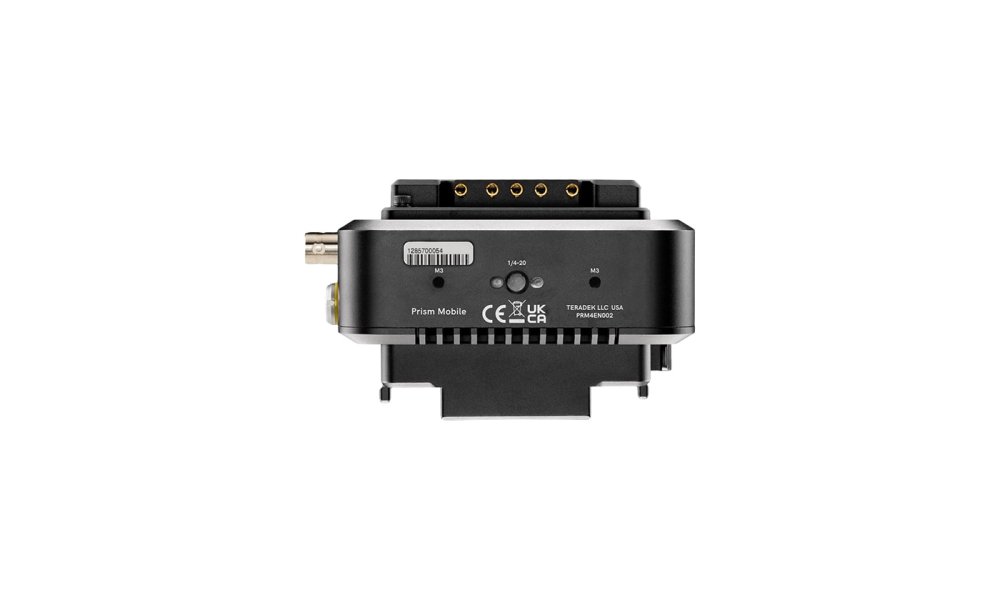

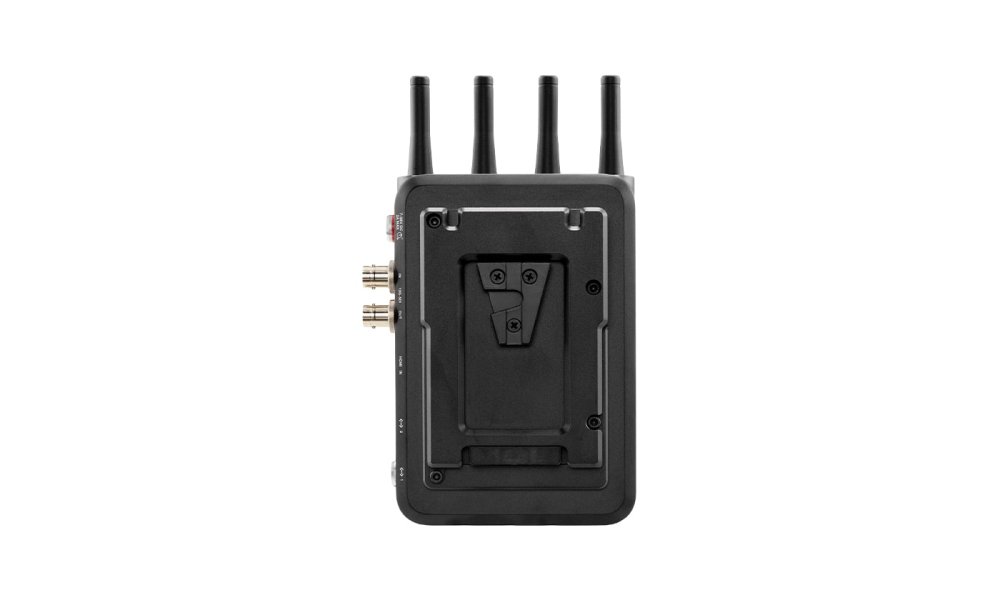

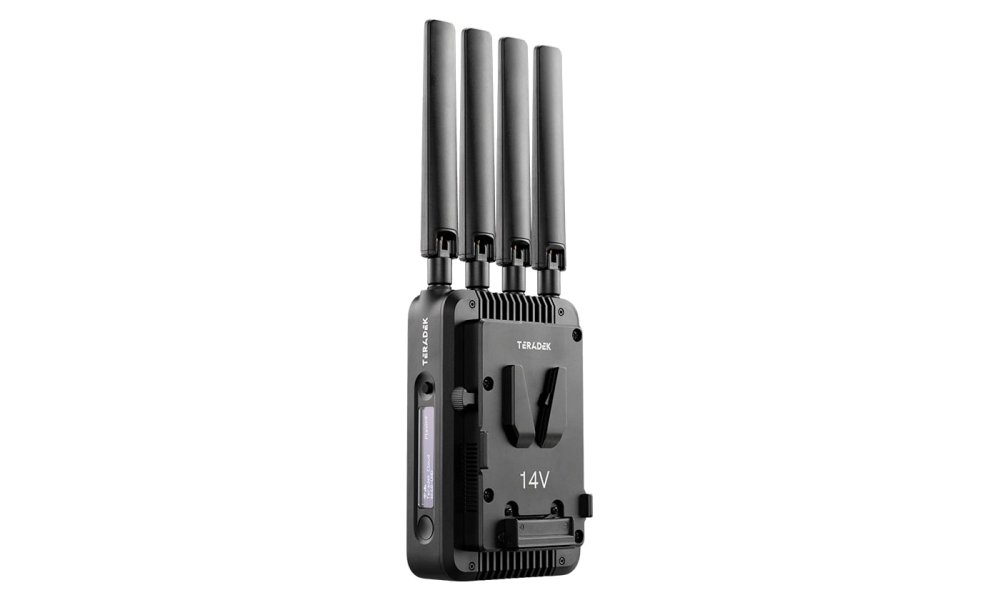

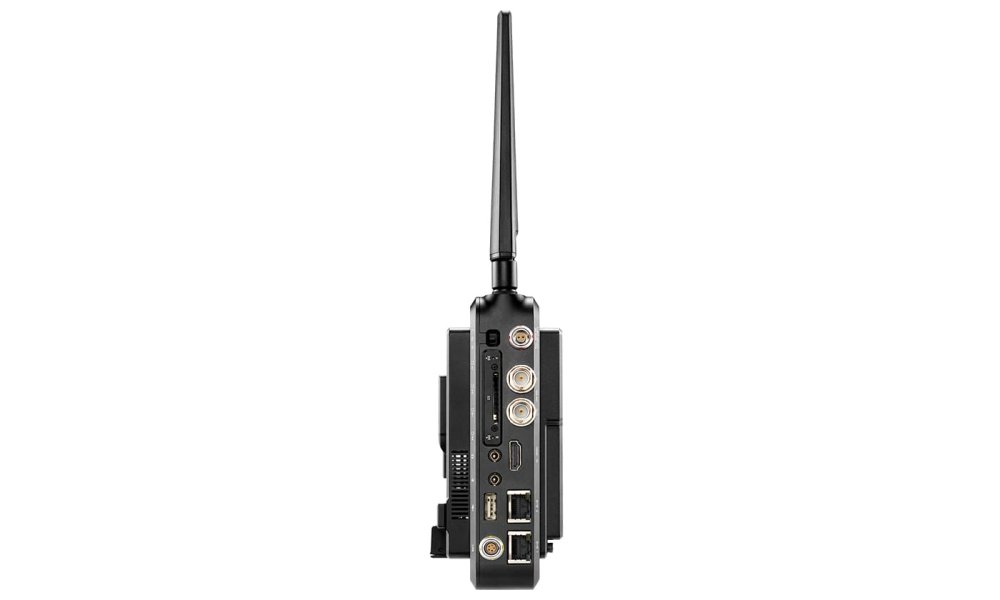

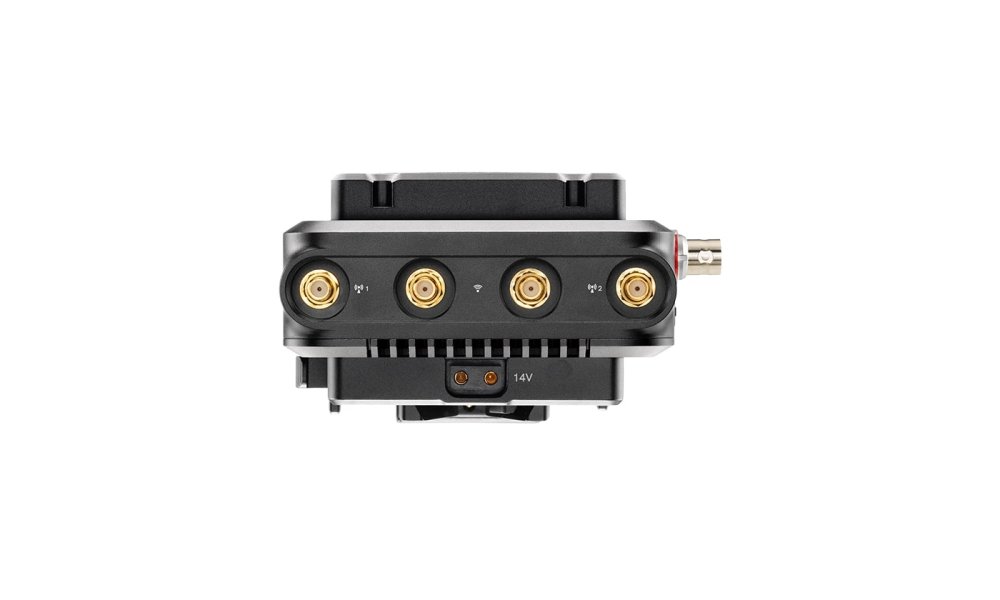

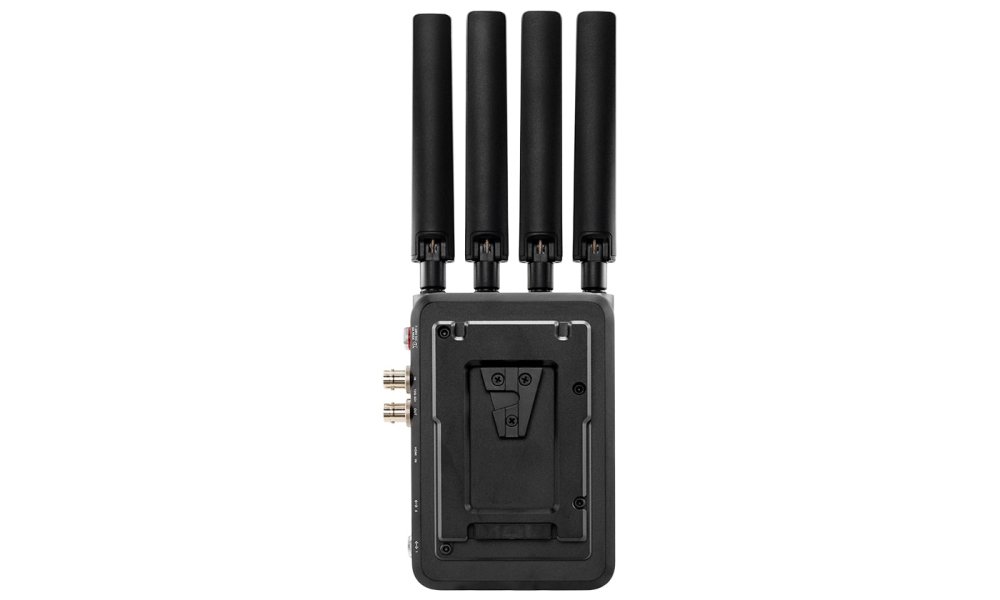

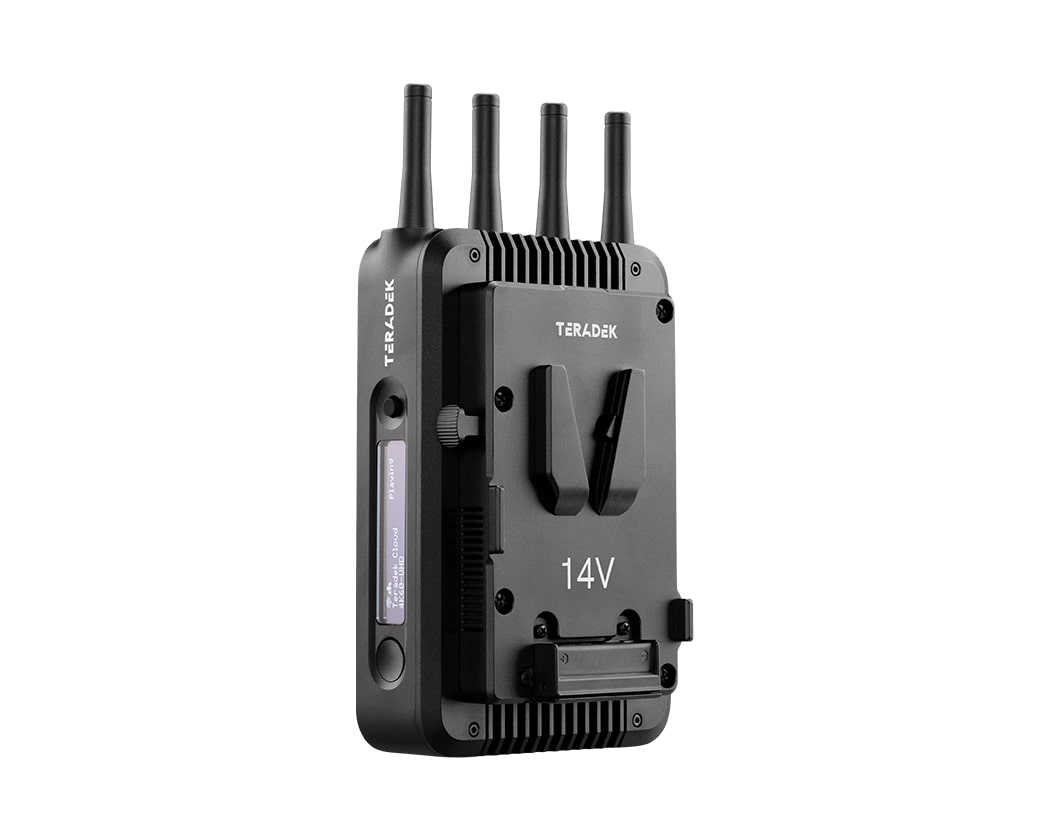

Teradek Prism Mobile MK II Backpack 859 w/2x 5G Modems (V-Mount)

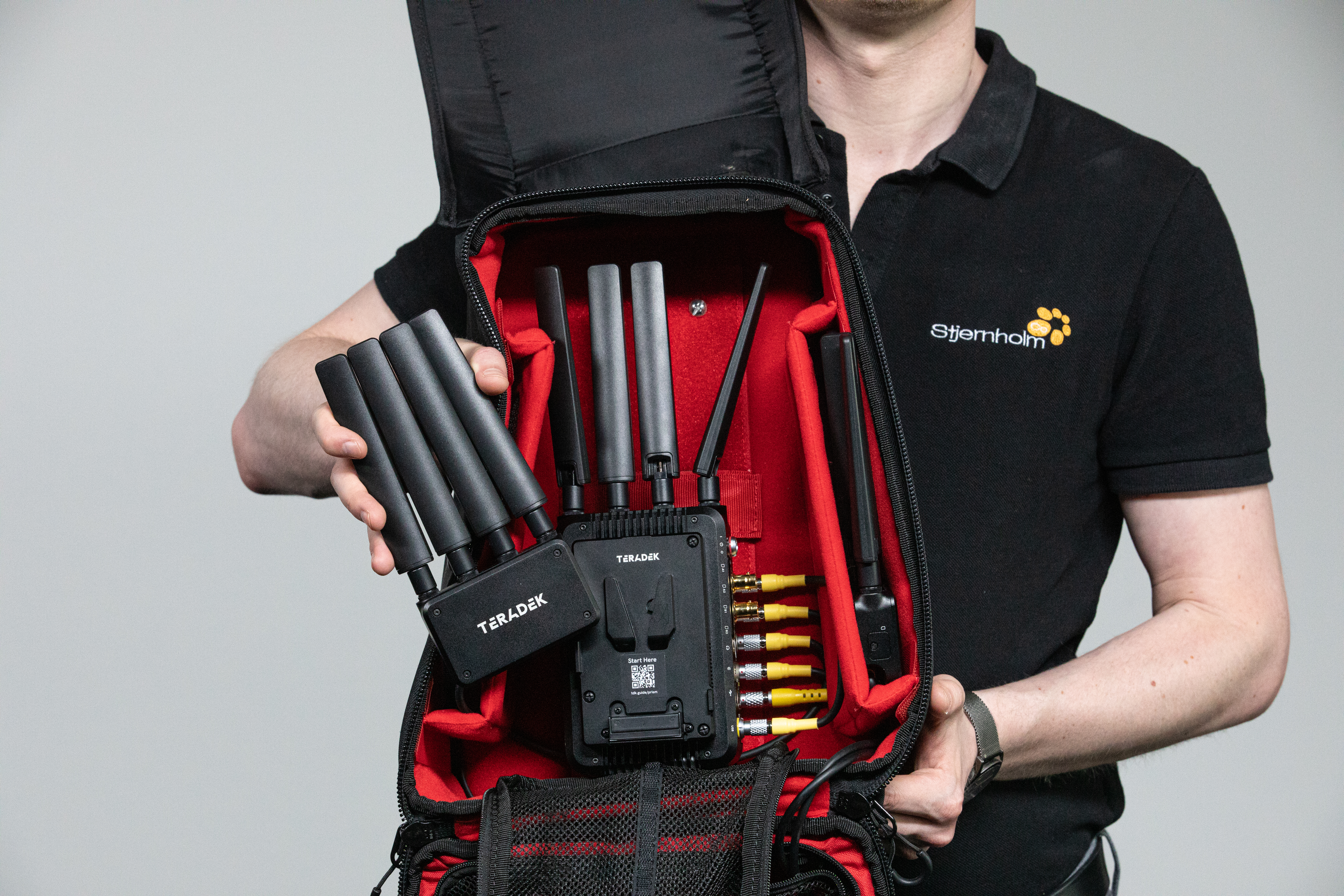

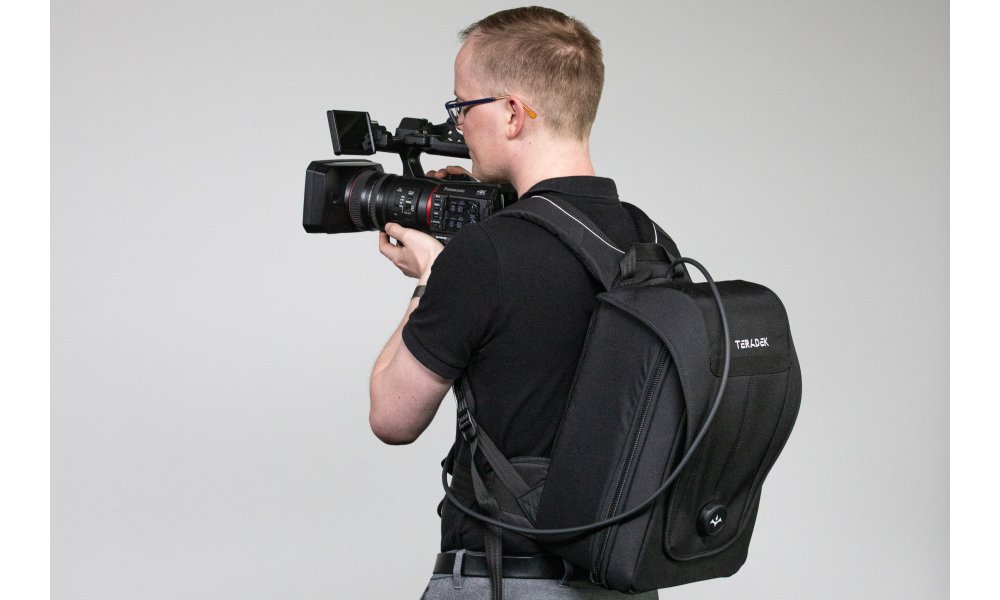

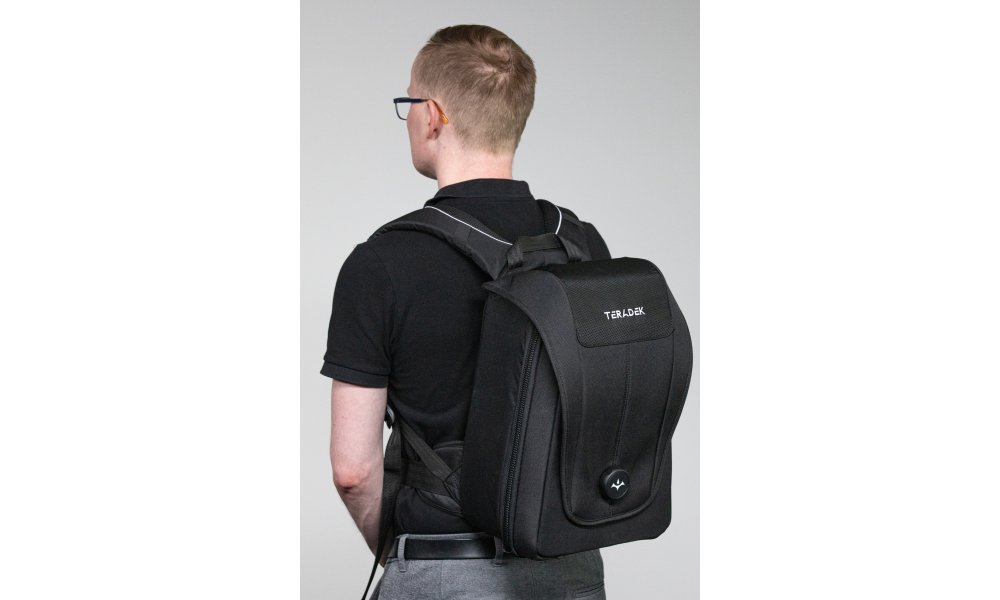

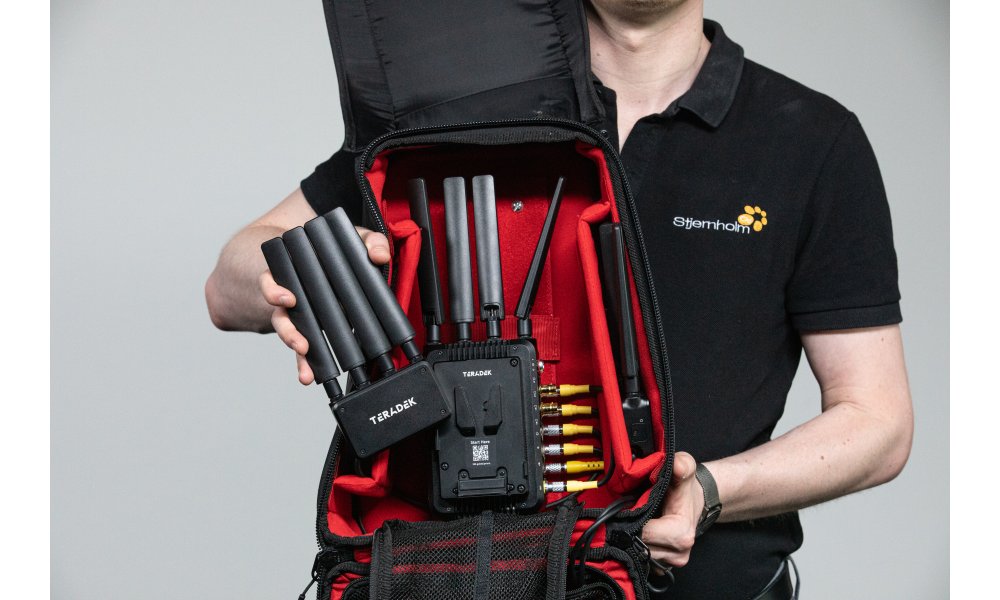

Udvid din Prism Mobile med Prism Mobile Backpack, det essentielle tilbehør til at udvide din mobilstreaming med op til 4 ekstra 5G-modemer.

Kombineret med Prism Mobile's indbyggede mobilforbindelse giver rygsækken op til 6 samtidige mobilforbindelser, for super robust streaming fra enhver placering.

Rygsækken er kompatible med alle Prism Mobile-enheder.

Video Inputs

• 1 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
• 1 x HDMI 2.0 Type-A

HDR Support

• Yes (2020-PQ, 2020-HLG, P3D65-PQ)

Video Outputs

• 1 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)

Supported Modes

• Single Encode, Bi-directional Encode/Decode (additional license)

Bonding

• Teradek Bonding Protocol, Teradek Reliable Transport (TRT)

Supported Resolutions

• 4K DCI p23.98/24/25/29.97/30/50/59.94/60
• 4K UHD p23.98/24/25/29.97/30/50/59.94/60
• 1080p 23.98/24/25/29.97/30/50/59.94/60
• 1080i 50/59.94/60
• 1080PsF 23/24/25/29/30
• 720p 50/59.94/60
• 576i 480i

Video Compression

• ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
• AVC: Baseline, Main, High
• ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
• HEVC: Main

Supported Video Bitrate

• 250 kbps to 85 Mbps

Video Format Conversion Support

• Built-in video scaler and deinterlacer

Number Of Encoder Streams

• Up to one 4KDCI p60 4:2:2 10bit

Color Correction

• CDL/1024 1D LUT (supports 10-bit color)
• 33x33x33 3D LUT (supports 10-bit color)

Network Protocols

• TCP/IP, UDP, HTTP, DHCP, NTP, TLS, IGMP

Supported Video Transport Protocols

• Teradek Reliable Transport (TRT)
• Secure Reliable Transport (SRT)
• RTMP/RTMPS
• MPEG-TS, DASH (UDP, TCP, TCP Server, Multicast)
• RTSP/RTP
• RIST
• HLS Client
• Integrated CDNs (YouTube, Facebook, Vimeo),
• WHIP

Remote Control

• Teradek Core Cloud, Private SDK

Audio Compression

• AAC-LC

Audio Bitrate

• 32kbps to 512kbps

Audio Input

• Embedded over SDI
• 3.5mm Stereo Line Level Analog or Microphone in, adjustable gain

Audio Output

• 3.5mm Stereo Headphone output
• Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A)

Dimensions

• 5.9"W x 3.9"D x 1.3"H [162 x 92 x 35mm]

Weight

• 23.4oz [664g] without plates; 30.5oz (864g) with plates

Construction

• Milled Aluminum

Mountability

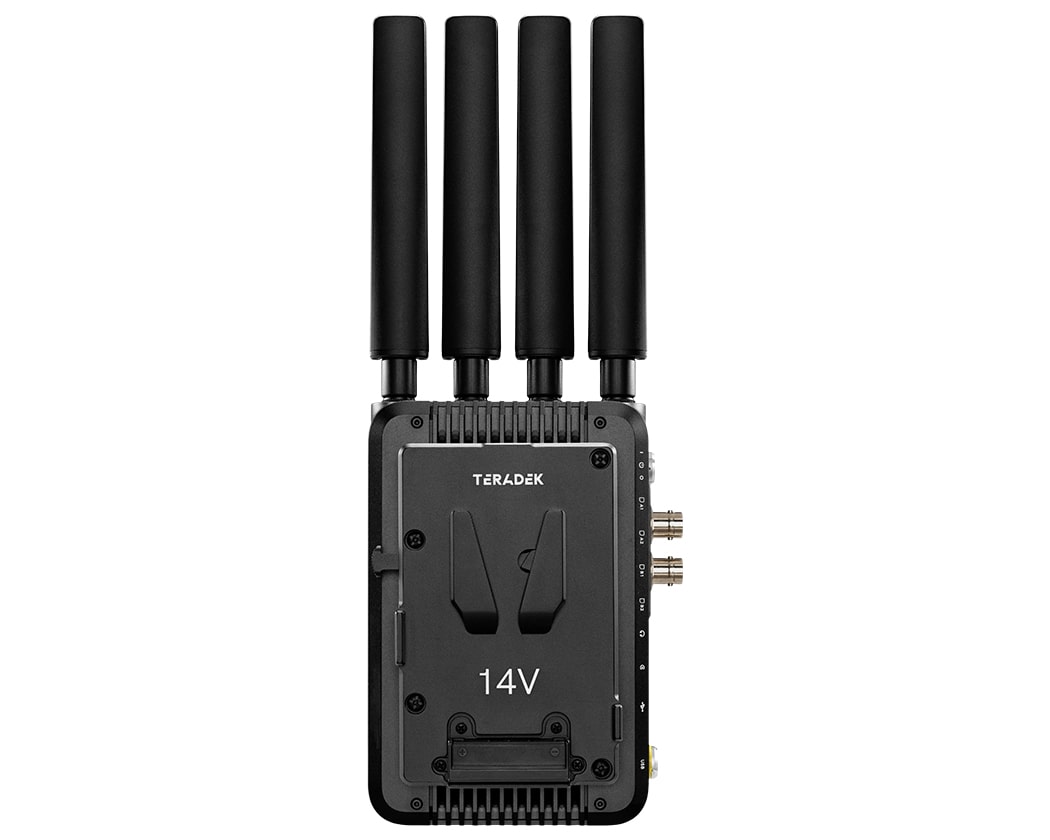

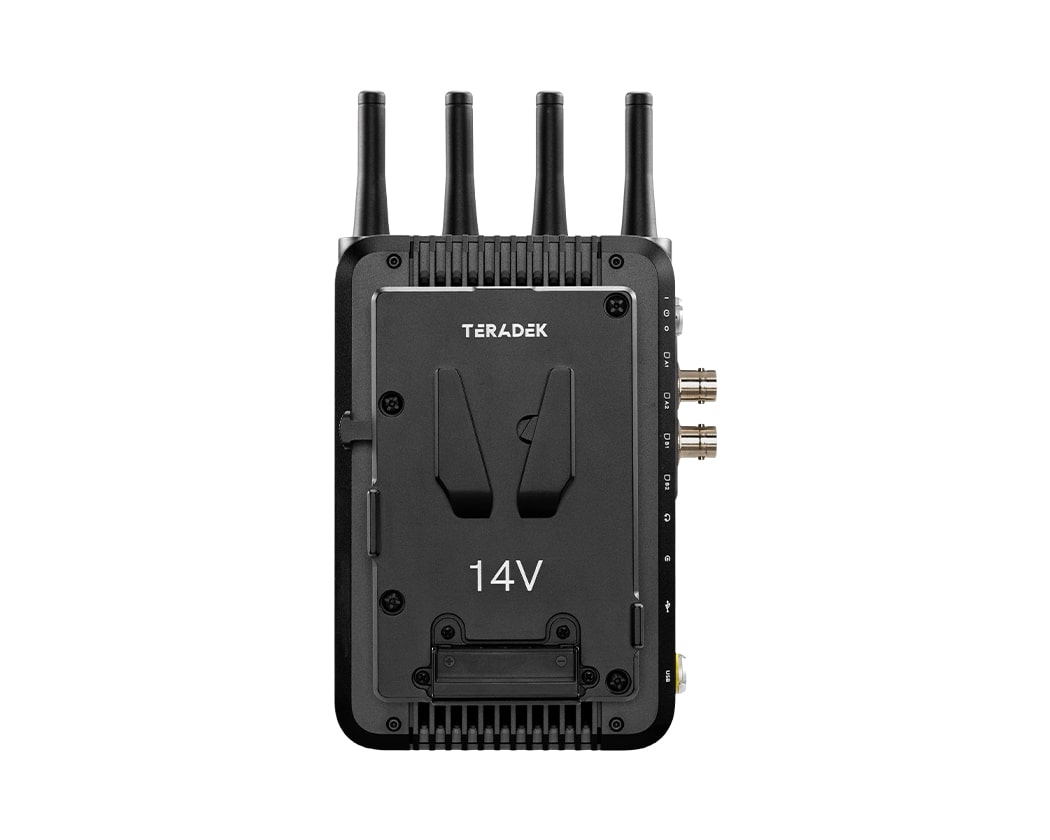

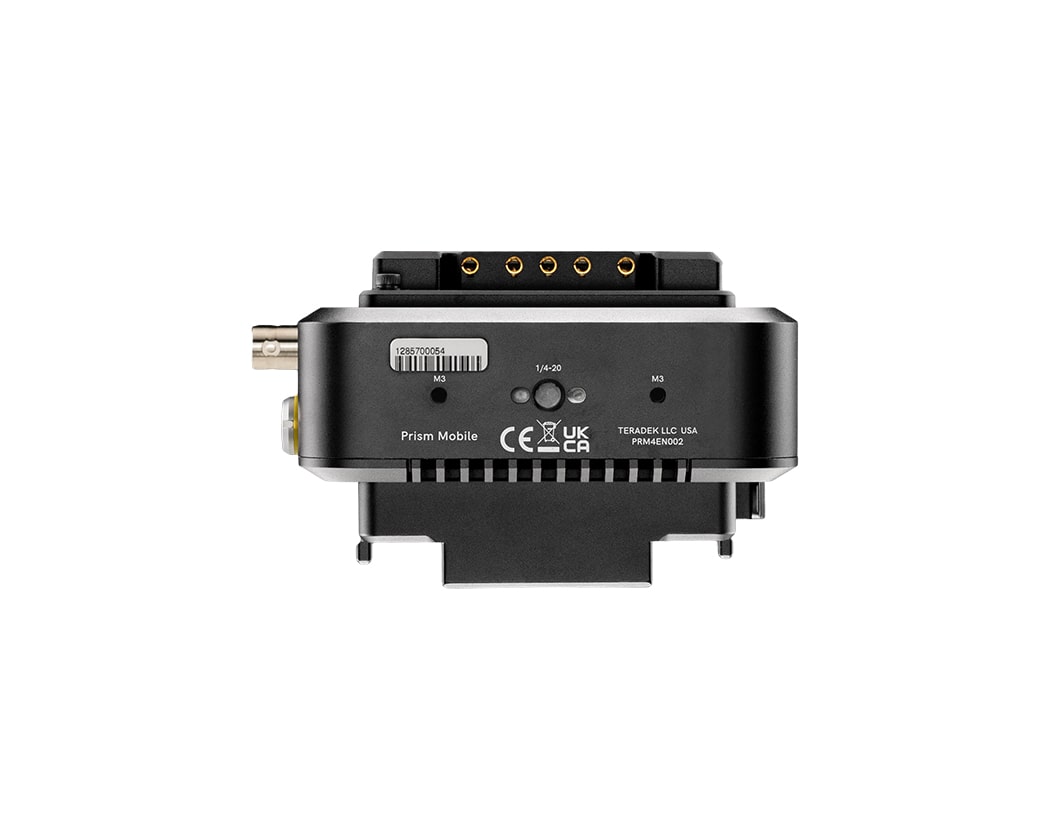

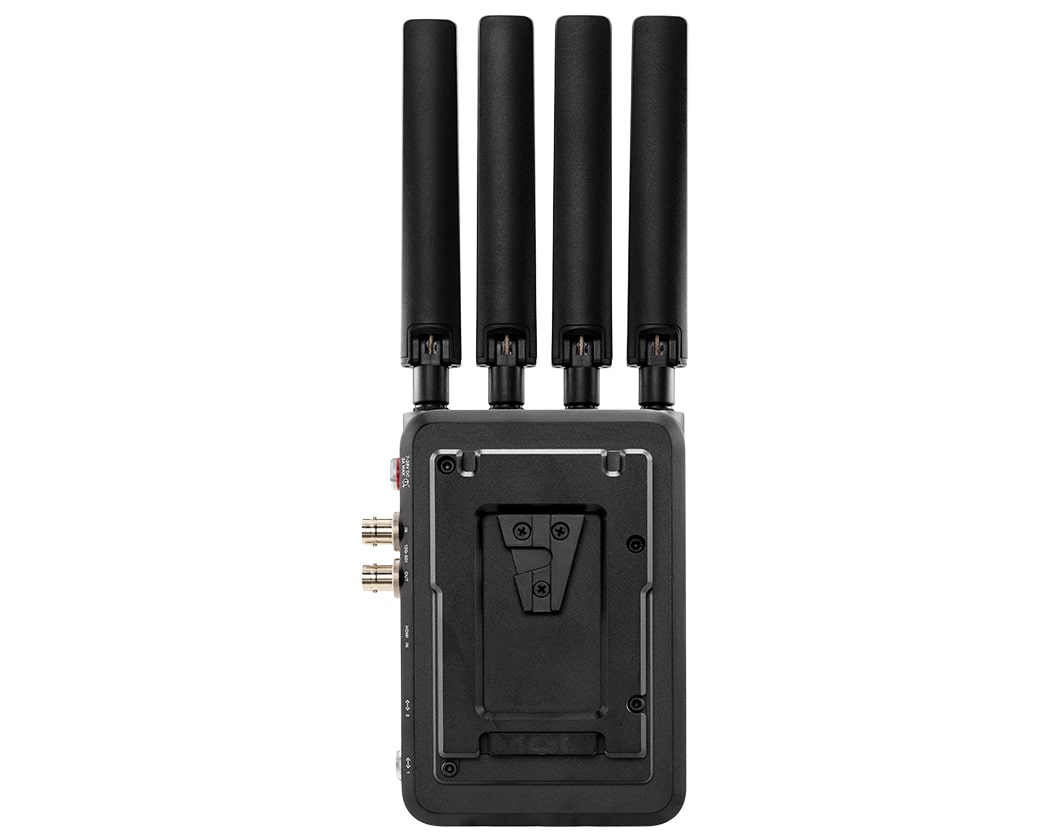

• Camera-back and V-Lock mounts. Can be mounted with 1/4" 20 mounting hole

Configuration Interfaces

• Core Cloud for remote device management
• Feature-rich Web UI for local device management
• Intuitive iOS configuration app

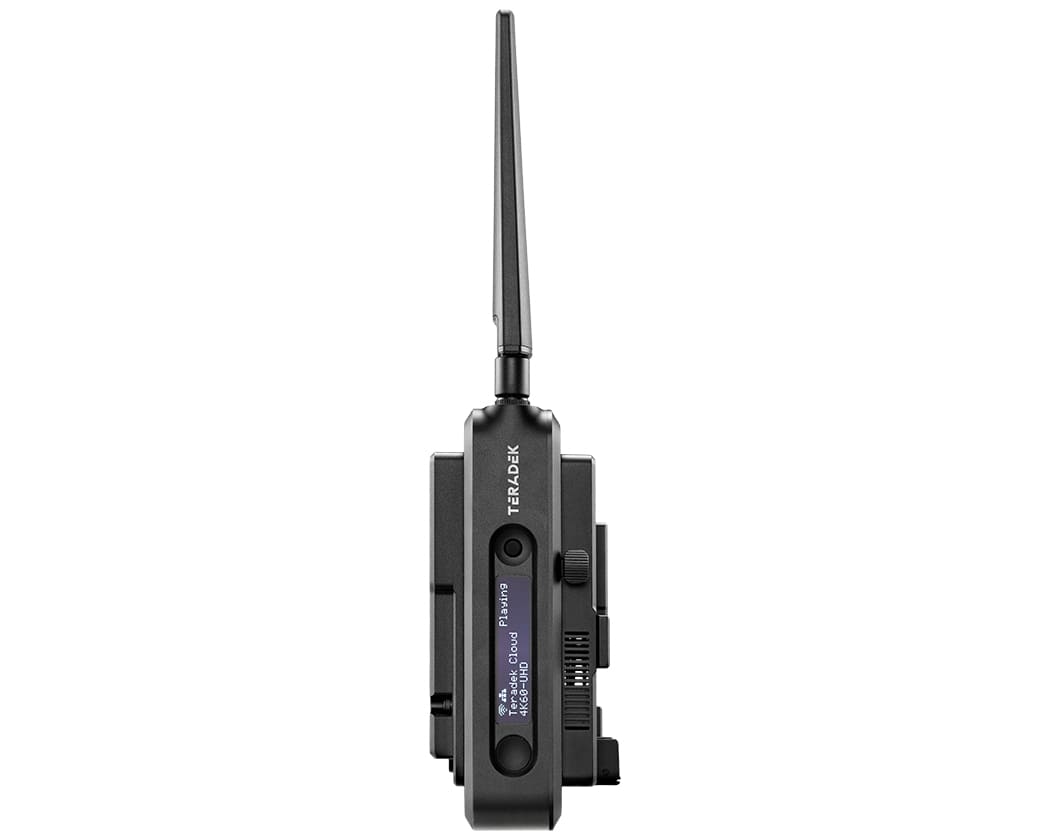

• OLED Status Display w/ Nav control buttons

Cellular

• 2x Internal Node II LTE Modems (CBRS supported)

Recording Storage

• SD Card - Full size, USB Drive, NFS

Cloud Services

• Native Sync with the following:
• Core Cloud
• Frame.io
• Sony Ci
• Sony C3 Portal
• Avid
• PIX
• Moxion

Usb Interface Functionality

• 1 x Powered LEMO with Node Modem support
• 1 x Powered USB-A with Node and external storage support

Ethernet

• 2 x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)

Wireless

• WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration

Power Input

• 2 Pin Circular Locking Connector

Nominal Power Consumption

• 20W Nominal, 36W Max

Auxilary Power Input

• 6-28V DC
