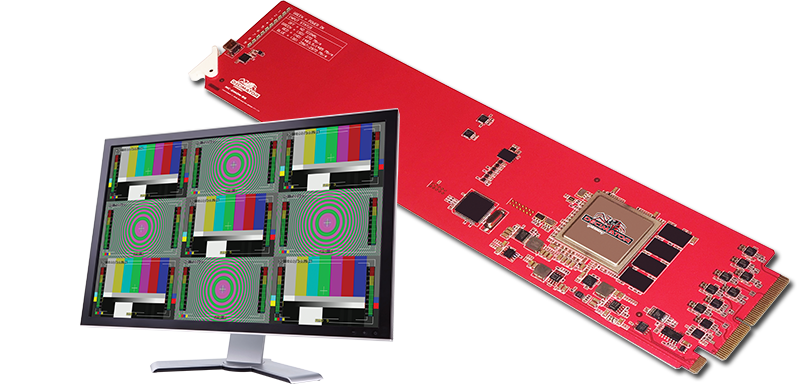

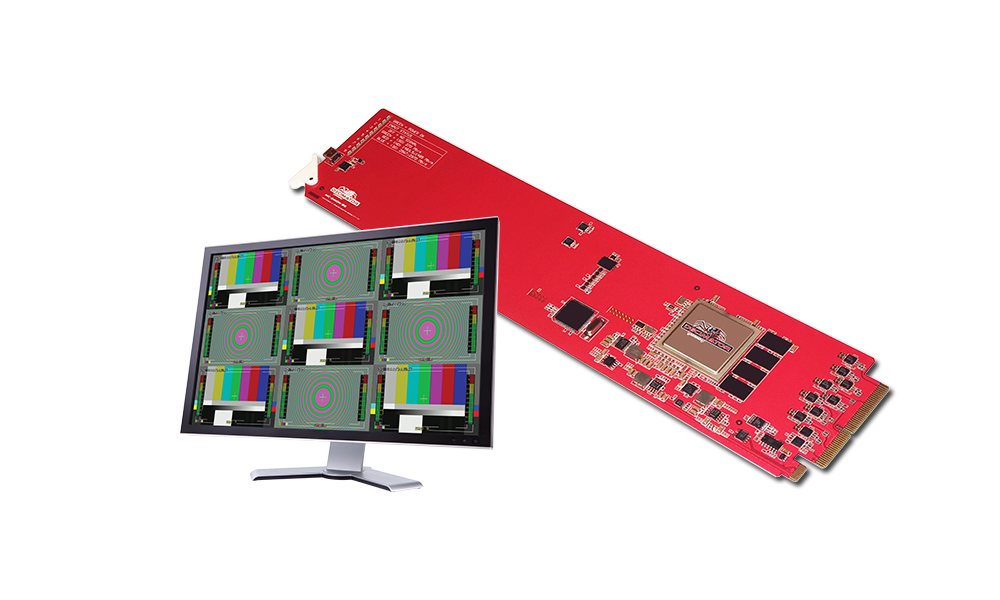

1 to 9 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts
-
Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
-
Low cost miniature (3G/HD/SD)-SDI 1 to 9 MultiViewer or 9 to 1 input multiplexer
-
Custom Layouts with various standard layouts
-
16 Character UMD overlay per window with individual enables, custom positioning and size
-
16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
-
Safe Action and Safe Title overlay per window with individual enables and adjustment
-
Centre Cross overlay per window with individual enable
-
Audio ID overlay
-
3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol
-
Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
-
Tally boxes allows for up to 4 Tallies per window
-
Fast switching between inputs using Full-Screen scaling
-
Selectable output format in both Full-Screen MultiViewer mode
-
Low latency buffering for each input allowing non-synchronous inputs
-
9 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)
-
Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
-
Variable aspect ratios per quadrant
-
In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs
-
USB Mini B port for control and firmware updates
-
Supports openGear DashBoard for control
-
The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485
