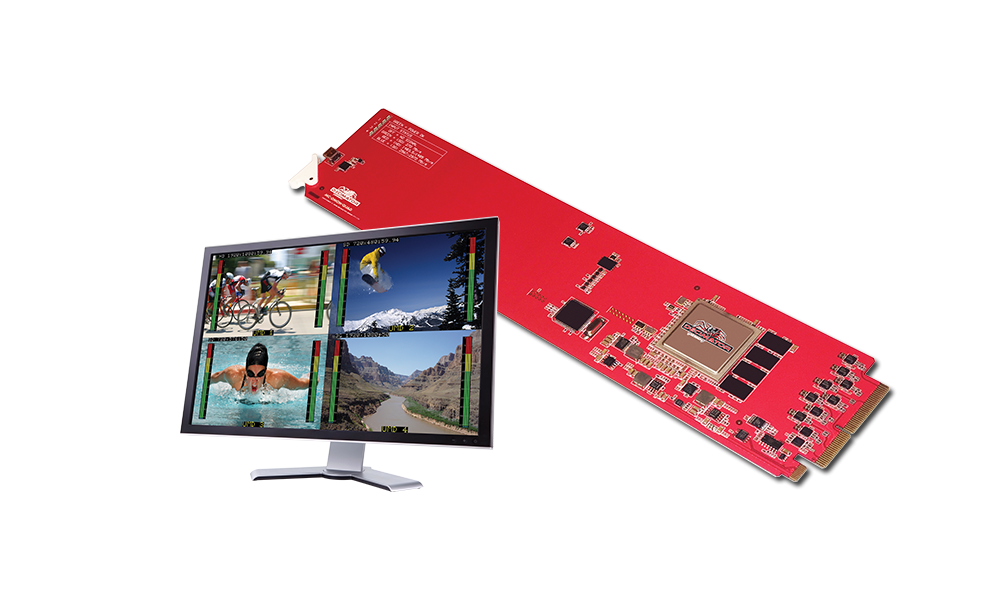

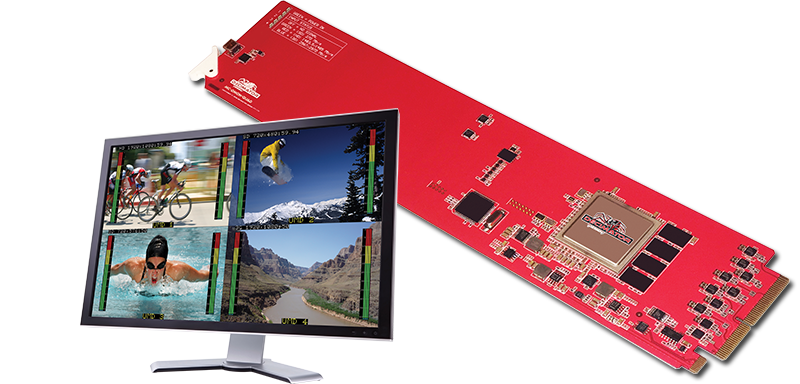

Decimator MC-DMON-QUAD: openGear 4 Channel Multi-viewer with SDI outputs for 3G/HD/SD

2.690,00 DKK

(ekskl. moms)

Model/Varenr.: DD-MC-QUAD

Showroom Herlev: Kontakt os, hvis du ønsker at afhente

Webshop: Levering mere end 5 hverdage. Kontakt os for leveringstid


stk

1 to 4 Channel (3G/HD/SD)-SDI MultiViewer with Custom Layouts

  • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B

  • Low cost miniature (3G/HD/SD)-SDI 1 to 4 MultiViewer or 4 to 1 input multiplexer

  • Custom Layouts with various standard layouts

  • 16 Character UMD overlay per window with individual enables, custom positioning and size

  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

  • Audio ID overlay

  • 3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol

  • Tallies can be applied to either Tally Boxes (Default) or Border

  • Tally boxes allows for up to 4 Tallies per window

  • Fast switching between inputs using Full-Screen scaling

  • Selectable output format in both Full-Screen MultiViewer mode

  • Low latency buffering for each input allowing non-synchronous inputs

  • 4 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)

  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

  • Variable aspect ratios per quadrant

  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs

  • USB Mini B port for control and firmware updates

  • Supports openGear DashBoard for control

  • The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485
